The compact rotary actuator Giro Box GB increases freedom of movement in the work area thanks to its 360° rotation.
Any tool can be rotated up to 360° to make work easier and more precise, saving time and reducing manual work.
Giro Box features a compact design with the aim of achieving high breakout forces. The cast body ensures a long service life requiring little maintenance.
Rotates each tool 360° reducing time and handling on site.
The Nox TR rotary hydraulic actuator enables continuous rotation through 360° and a tilt angle of 50° on both sides.
It allows maximum efficiency on any application and saving time and resources. In this case, the precise, well calibrated infilling of trenches and the moving of different types of materials in tight areas are no problem.
Increase your range of operation for more freedom of movement with 360° rotation and 50° tilt per side.
The Grab Module TRG is ideal for handling logs and pipes. Does not interact with the attachment’s motor.
The M’lock, reversible quick coupling is equipped with the most advanced safety systems: the front visual indicator that is activated when the pins are engaged and shows the operator the coupling status from the cab; the double seat coupling fork and the side visual indicator. “Safe Check”allows you to check the coupling status. The side panels are made entirely of HB400. It is available even in semi automatic configuration.
The hydraulic version, with a double-acting system, handles coupling and uncoupling directly from the cab in a few seconds. The active safety system features a front safety lock that is activated when the pins are engaged and secures the tool, preventing it from accidentally falling in the event of incorrect engagement. If the pins disengage, the safety mechanism around the body of the coupler is automatically triggered. The coupling status can be checked easily and immediately by the driver in the cab thanks to a visual indicator on the attachment. Added to this is the triangular side indicator. During coupling, once the pins are engaged the operator can check the status at once from the cab; if the indicator is red, the operation has failed.
The new couplers are also fitted with an additional system to prevent accidental attachment drops. In response to the ever-tighter safety regulations, the new double cradle form of the fork provides an even greater obstacle to dropping of an incorrectly coupled attachment; if coupling alignment is incorrect and the tool position means there is a risk of disengagement, the pin is offered a backup locking position in the new fork profile, to prevent dropping.
The new triangular ‘Safe Check’ side indicator allows the coupling status to be checked for increased safety.

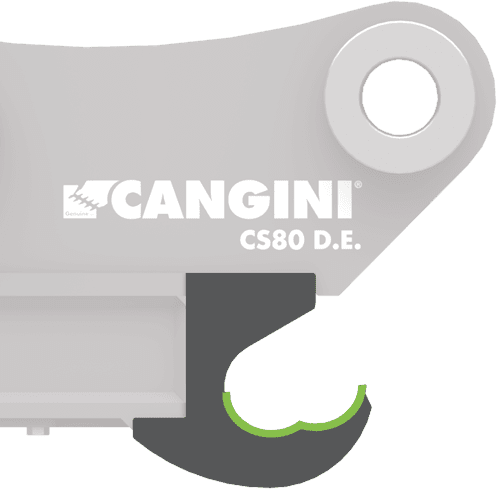

Thefork’s double profile creates a greater obstacle to the tool falling.

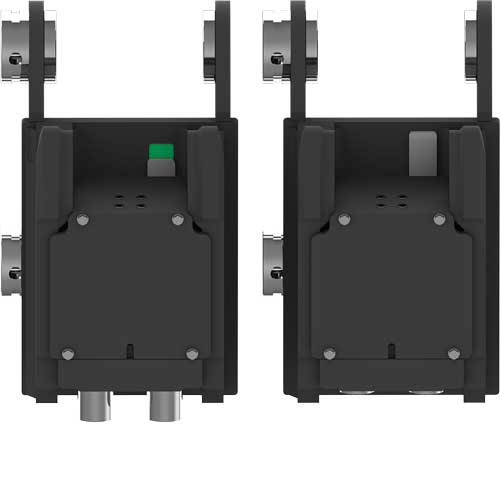

Thanks to the visual front indicator, the coupling status can be checked directly from the cab.
Together, these three features make the quick coupling safe and compliant with the requirements of the Machinery Directive.
The reversible S Nordic System quick coupler allows simple attachment coupling and uncoupling in just a few seconds. Ready for any working conditions, it can be installed on the quick coupling systems most widely used in Scandinavia.
In the double-acting hydraulic version, the operator can change the attachment easily without leaving the cab and without the aid of additional staff, with a major time saving which makes changing tool worthwhile even for short work cycles.
In the hydraulic version the ‘Safe check’ side indicator allows full control of the coupling stage. It allows you to check that the quick coupling is safely engaged.
Added to this is the front indicator that allows to check the coupling status directly from the cab for more safety.
The fork’s double profile create a greater obstacle to the accidental fall of the tool.
Il nuovo indicatore Laterale triangolare “Safe check” permette di verificare lo stato di aggancio per una maggiore sicurezza.
Il profilo a doppia culla crea un maggiore ostacolo alla caduta dell’utensile.
Grazie all’indicatore visivo frontale è possibile verificare lo stato di aggancio direttamente dalla cabina.
L’insieme di queste tre caratteristiche rende l’attacco rapido sicuro e conforme alle richieste della Direttiva Macchine.
Twist ks hydraulic actuator allows an inclination of up to 180°, increasing flexibility and efficiency of all equipment to simplify the Digging operations also in places difficult to reach.
The design is compact with minimal height and low weight, while its robust structure Ensures a long working life.
It is the strongest ally for the maintenance of banks, the construction of channels and the civil engineering works. Twist enables the bucket to increase its tilt angle – up to 90° on each side – and to reach positions otherwise inaccessible with a standard equipment (coupler + tool).
The Twist hydraulic actuator provides multiple working angles, enabling the tool to reach positions well-beyond the limits of standard machine arm movement, enhancing its versatility. This characteristic is essential for effective work on site, where a well-done job carried out in short time is a key factor in work profitability. Twist enables the bucket to increase its tilt angle – up to 90° on each side – and to reach positions otherwise inaccessible with standard equipment (coupler + tool). Machine effectiveness increases greatly: the wider tilt angle optimizes its range of action.
No need to re-position the machine on the site as often: by keeping the machine static, the operator can easily work in multiple positions, reaching wider work areas in less time. The direct consequences are manifold as well as the advantages: wear, clutches and breakages rot, the engine strains less, maintenance interventions decrease as well as fuel consumption. A single operator is able to complete multiple tasks quickly, reducing downtime and increasing work yield.
Thanks to its 90° tilt on each side, it can reach work positions otherwise inaccessible with standard equipment.
Its compact body optimizes machine performance.
An integral check valve, fitted as standard, allows Twist to hold its position in case of pressure loss on the hydraulic line.
The CW HAND’O’LOCK quick coupler with patented system allows simple tool coupling and uncoupling in just a few seconds. Rugged and easy to use, it is designed for installation on Netherlands quick coupler change systems.
Available in mechanical and double-acting hydraulic version, the CW HAND’O’LOCK quick coupler enables effective excavator use by reducing the machine down-times caused by attachment changes.
In the hydraulic version, the operator can change the attachment easily without leaving the cab and without the aid of additional staff, with a major time saving which makes changing tool worthwhile even for short work cycles.
Effective excavator use means availability of the best attachment for the job in hand. The CW Aut’o’Lock quick coupler with patented system allows simple tool coupling and uncoupling in just a few seconds.
Rugged and easy to use, the CW Aut’o’Lock is designed for installation on Netherlands quick coupler change systems.
It includes a semi-automatic system which only requires operator intervention during uncoupling; the new tool is coupled and made safe automatically.
The operator therefore only has to leave the driving position once to change the attachment easily, with a major time saving which makes changing tool worthwhile even for short work cycles.
Strong and versatile, it is the universal coupler for attachments with fixed coupling system. With width adjustment system, it allows the coupling of tools and attachments of different widths.
Available in hydraulic and mechanical versions, the Pl Pin Lock quick coupler permits direct coupling of attachments with the original coupling, without modifications of any kind. In the double-acting hydraulic version, the operator can change the attachment easily in just a few seconds without leaving the cab and without the aid of additional staff, with a major time saving which makes changing tool worthwhile even for short work cycles. In the mechanical version, coupling and uncoupling are manual.
It is rugged and durable, with the parts most exposed to wear constructed in high-strength HB400 steel.
The parts most exposed to wear are constructed in high-strength HB400 steel.

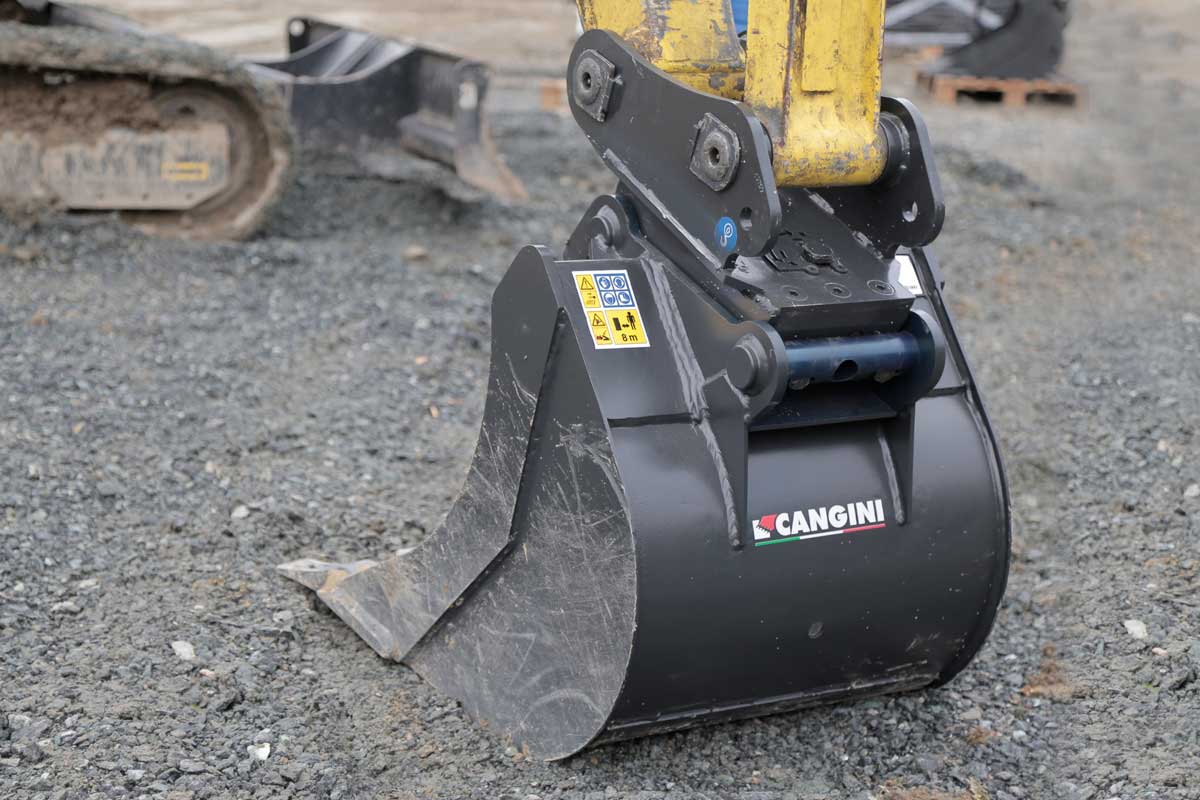

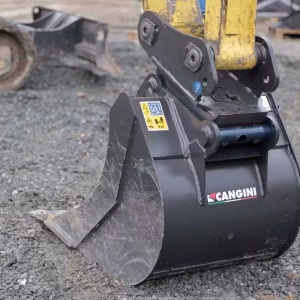

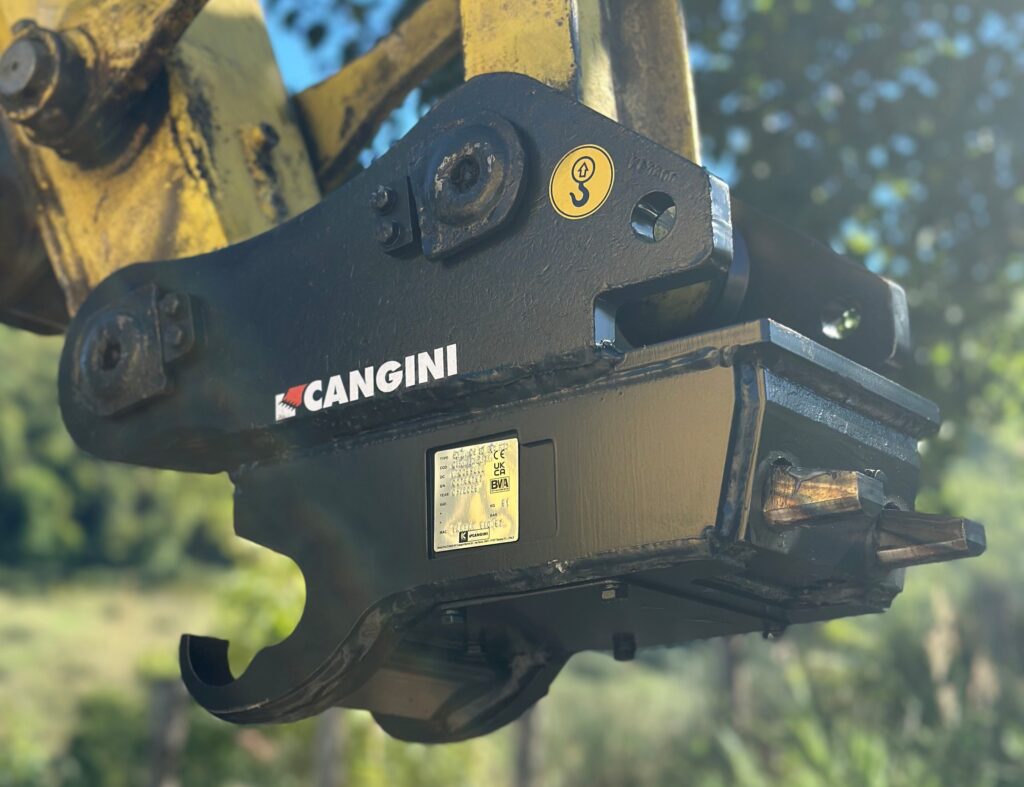

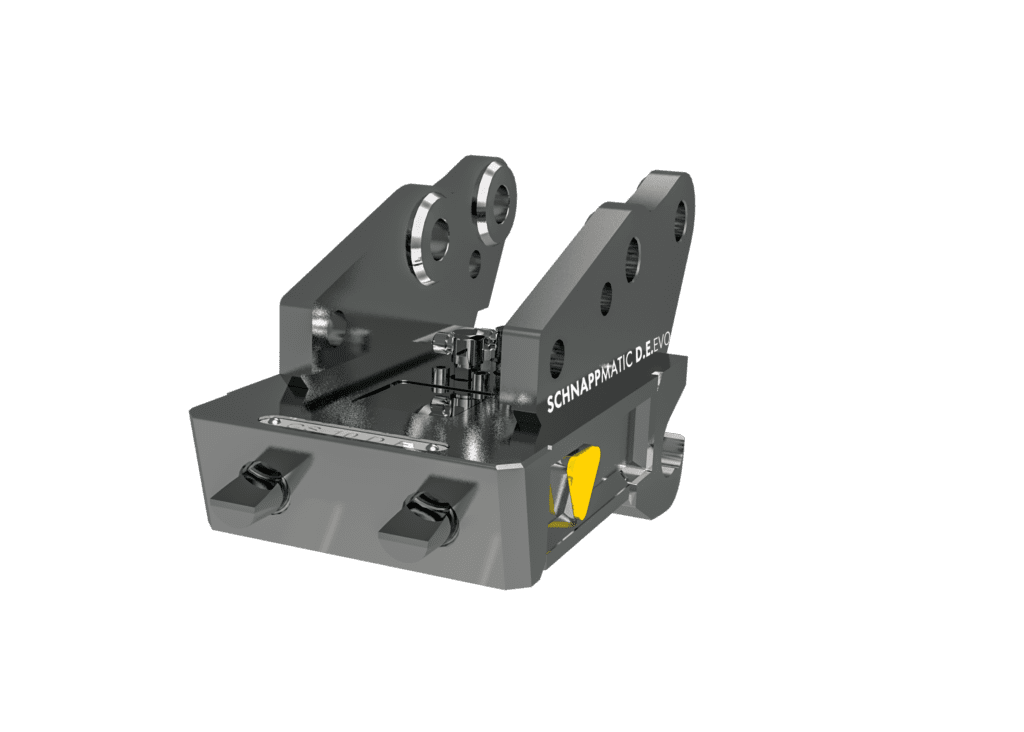

The CS Schnappmatic D.E. quick coupler, with its double-acting allows attachment coupling and uncoupling directly from the cab in just a few seconds.
It is equipped with the most innovative safety systems: an integral check valve, supplied as standard, and the coupling fork’s double profile.
The HB400 fork makes the quick coupler a rugged tool, suited to withstand high workloads, ensuring a long working life.
The model for machines from 12 to 19 tons, the CS100 Schnappmatic D.E., is equipped with cone-shaped pins that guarantee efficient force distribution.
